  1. Appendix

Performance Specifications

PreviousTechnical DimensionsNextElectrical Interfaces

Last updated 3 months ago

*The estimated flight times below were tested with 20% battery left after the X55 had landed.

*Tests were conducted <800ft above sea level at 16C (72F). Results may vary depending on altitude, air density, or additional accessories powered by the batteries.

Battery Module Flight Time Chart

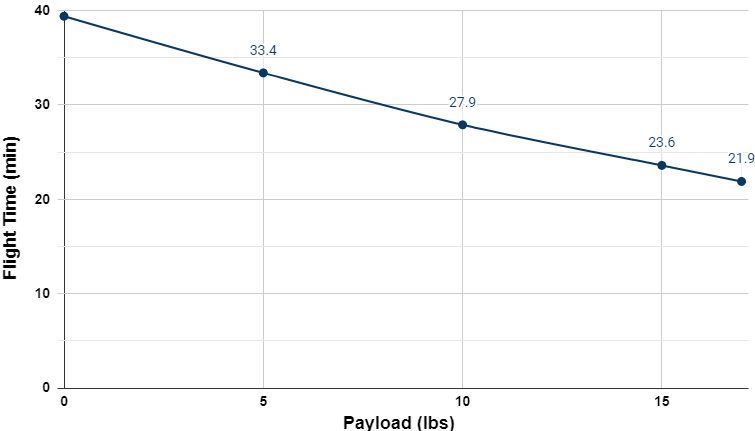

Standard 16Ah 12S Flight Battery set

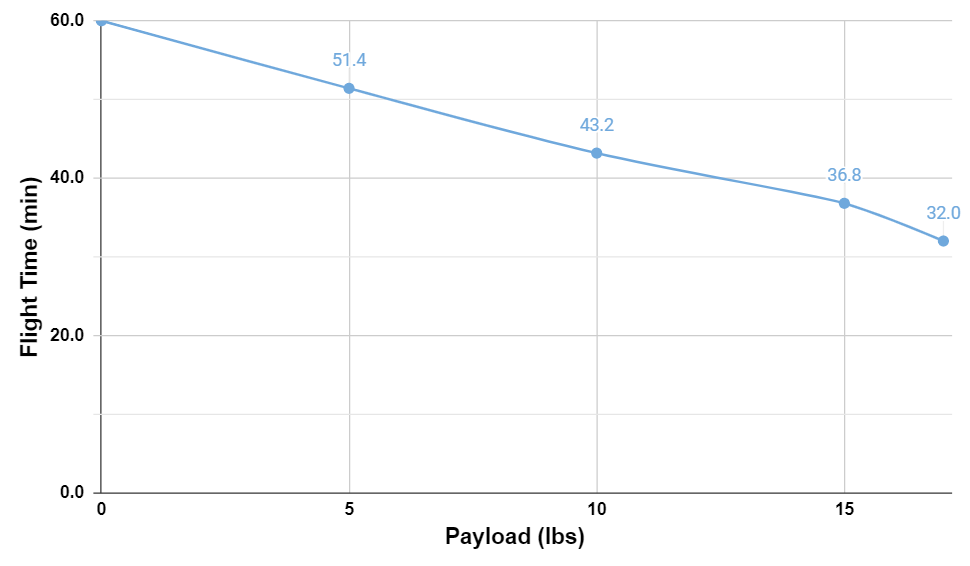

Semi Solid State Li-ion 27Ah Battery Set
